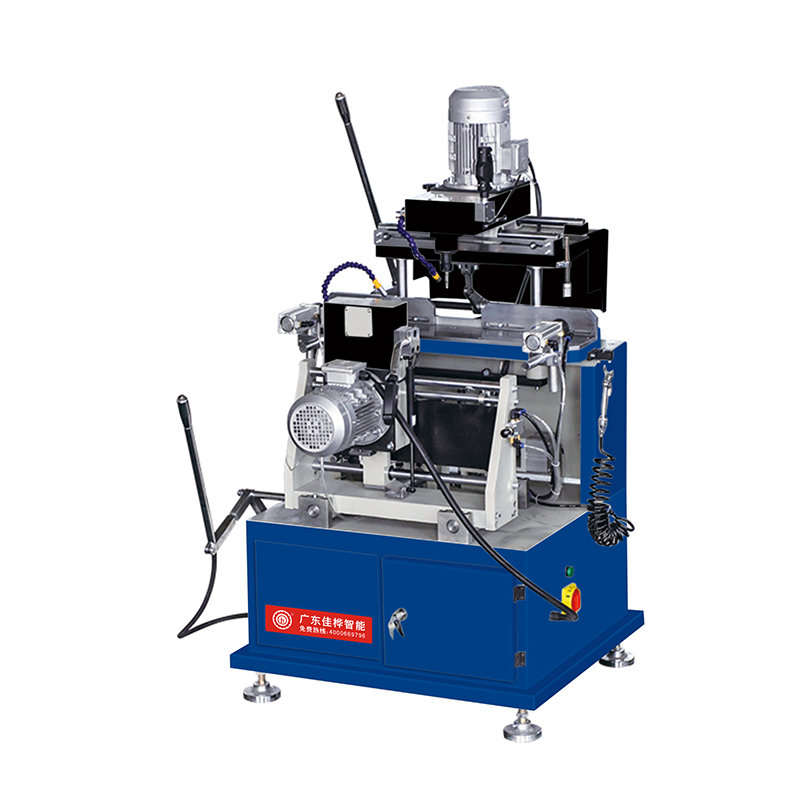

This machine is a specialized equipment used for processing various types of holes and slots such as aluminum profile door and window drainage channels, pulley slots, lock holes, and hardware holes. By replacing different imitation plates, different shapes of hole slots can be processed. Adopting high-speed cutting (1200r/min), pneumatic clamping, high work efficiency, stable and reliable performance.

Technical parameters:

Input power supply: 380V 50Hz

Working pressure: 0.5-0.8 (Mpa)

Gas consumption: 30L/min

Input power: 3kw

Copying range: Vertical 90 × 290 (mm), Horizontal 300 × 100 (mm)

Dimensions: 1000 × 1150 × 1500 (mm)

Weight: 200kg
