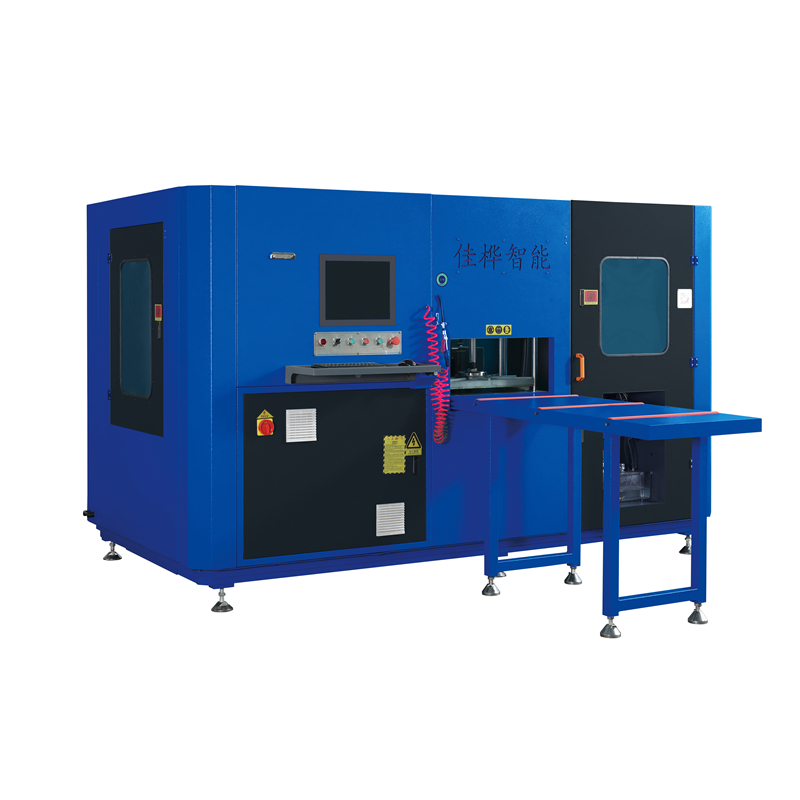

Suitable for high-end home decoration/system doors and windows, as well as end face milling of various aluminum profiles, with intelligent and user-friendly operation. The machine tool is controlled by a five axis CNC system, with one spindle capable of rotating 180 degrees. Pre set profile end face processing program, only need to start one processing program to work, can continuously process different styles of workpieces. Fast processing speed and high precision.

Technical parameters:

Motor speed: 2800r/min

Dimensions: 3180 × 1700 × 2000mm

Spindle diameter: ∅ 300×∅30mm

Maximum tenon opening: 40mm

Tool adjustment stroke: 85mm

Tool feed stroke: 1600mm

Motor power: 2 × 3kw

Work pressure: 0.6-0.8Mpa

Working voltage: 380V/50HZ

Whole machine weight: 1300kg
