One Product Introduction:

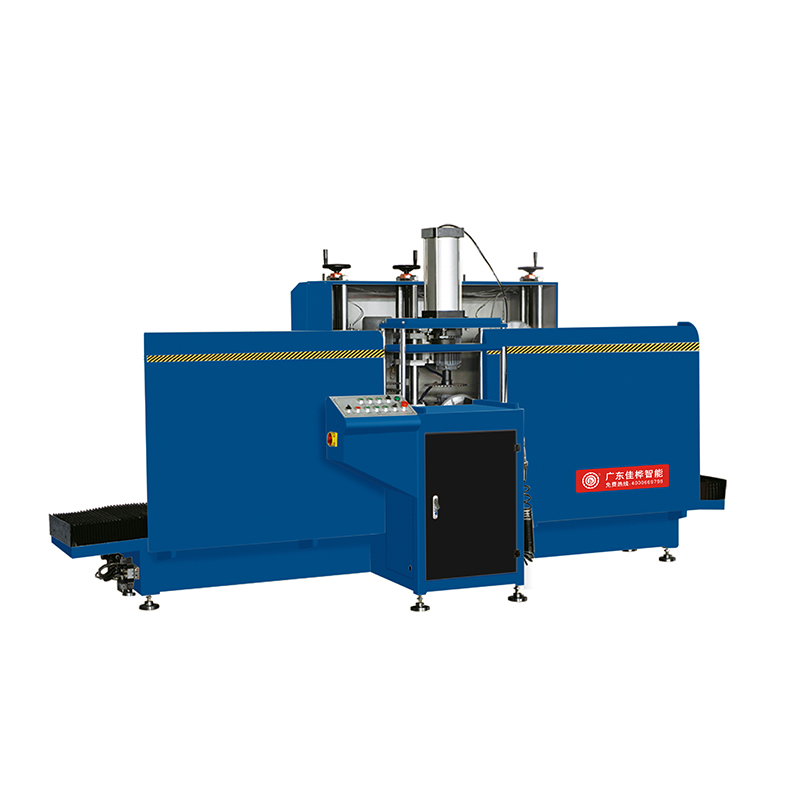

This milling tenon machine is improved by drawing on the advantages of similar products in the market, especially in terms of the materials and structure of the frame. The structure is reasonable and perfect, the appearance is beautiful and generous, the operation is flexible and convenient, and the effect is satisfactory. Since its launch in the market, it has immediately been highly praised by users.

II Product Structure Features:

1. Six blade shaft structure, with adjustable blade shafts and two blade shafts that can rotate.

2. Choose a linear bearing guidance system to ensure smooth and flexible movement of the workbench.

3. The air and oil mixing cylinder drives the worktable to feed steadily and retract quickly.

4. The guide column of the blade movable seat has been electroplated, making the blade seat flexible and aesthetically pleasing to lift and lower.

5. Pneumatic atomization cooling system ensures better milling results and more durable cutting tools.

6. The flange on the motor spindle is connected to the cutterhead with unique screws to ensure safety.

III Main technical parameters:

1. Working voltage: 380V

2. Motor power: 14.3KW

3. Motor speed: 2800r/min

4. Workbench: 450 × 600 mm

5. Milling height: 150mm

6. Clamping profiles: 5-13 pieces

7. Rotation angle:- 90o～90o.

8. Blade specification: φ 250 × φ 25.4 × 5 (6.7.8) mm

9. Working pressure: 0.6-0.8MPa

10. Whole machine weight: 980kg

11. Dimensions: 2950 × 1080 × 1680mm
