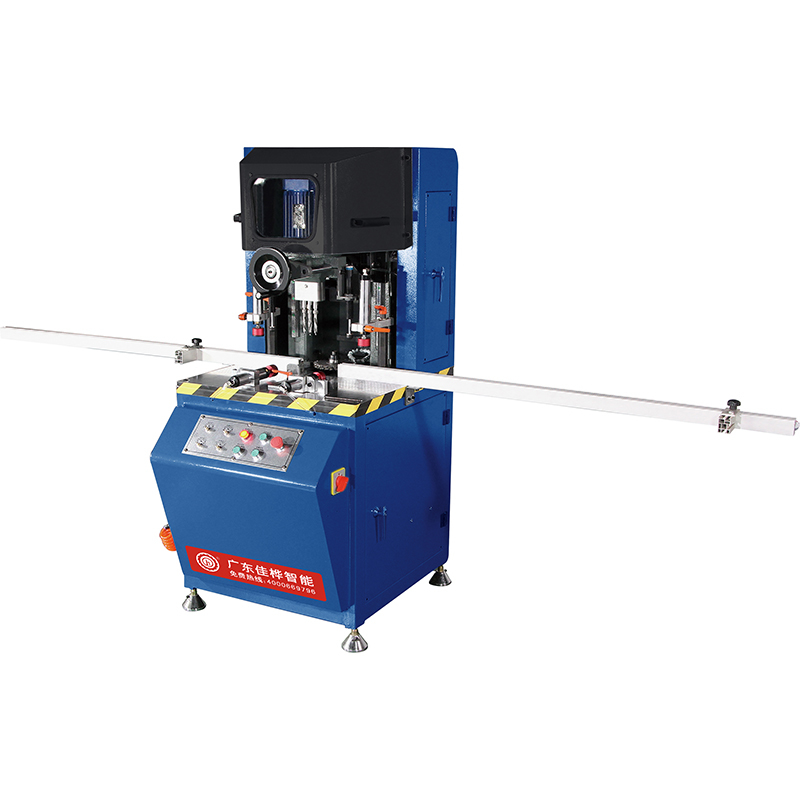

The lock box and lock hole integrated machine, known as the "miracle tool for casement windows", is used for processing handle installation holes and slots for doors and windows. It is suitable for bridge cut casement windows and seamless welded windows.

Product features:

Realize the integrated function of drilling and milling, with high efficiency and simple operation.

The molding of the lock box and lock hole only takes 7 seconds, without the need for marking and positioning. Both sides are equipped with positioning rulers, saving time and effort.

Technical parameters:

Working voltage: 380V-50HZ

Main motor power: 2.2KW+1.5KW

Drill bit rotation rate: 1400R PM

Milling cutter speed: 2800R PM

Working pressure: 0.6-0.8Mpa

Machine weight: 260KG

Dimensions: 700 * 860 * 1650mm
