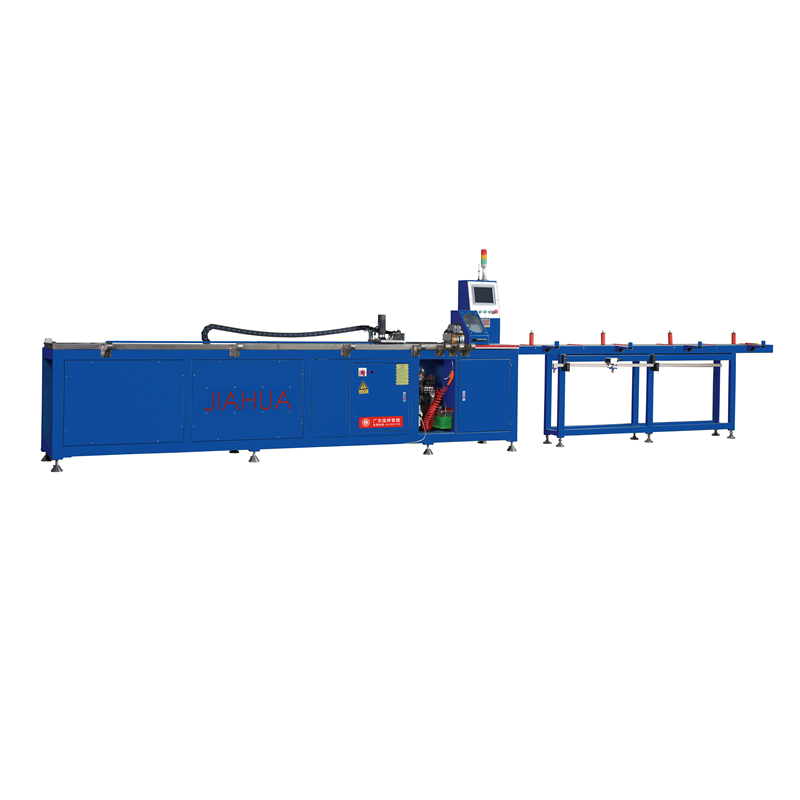

Used for cutting aluminum doors, windows, and curtain wall profiles. Adopting imported square rails for the system, with high precision and long lifespan. The gas-liquid damping cylinder ensures uniform feed, smooth movement, high transmission accuracy, accurate positioning, and smooth operation of the saw blade. The use of Bluetooth wireless CNC technology enables automatic cutting of profiles of different specifications and sizes, achieving 90 degree angle cutting of profiles.

Technical parameters:

Power supply: 380V 50Hz

Sawing motor: 2.2Kw

Speed: 2800r/min

Saw blade specification: 350x30x120T

Work pressure: 0.6-0.8Mpa

Gas consumption: 50L/min

Sawing feed rate: ≤ 3m/min

Head movement speed: ≤ 20m/min

Cutting length: 120-3800mm

Cutting angle: 90 degrees

Cutting range: Width 110mm x Height 100mm

Dimensions: 8500 * 1100 * 1700mm

Weight: 900KG
