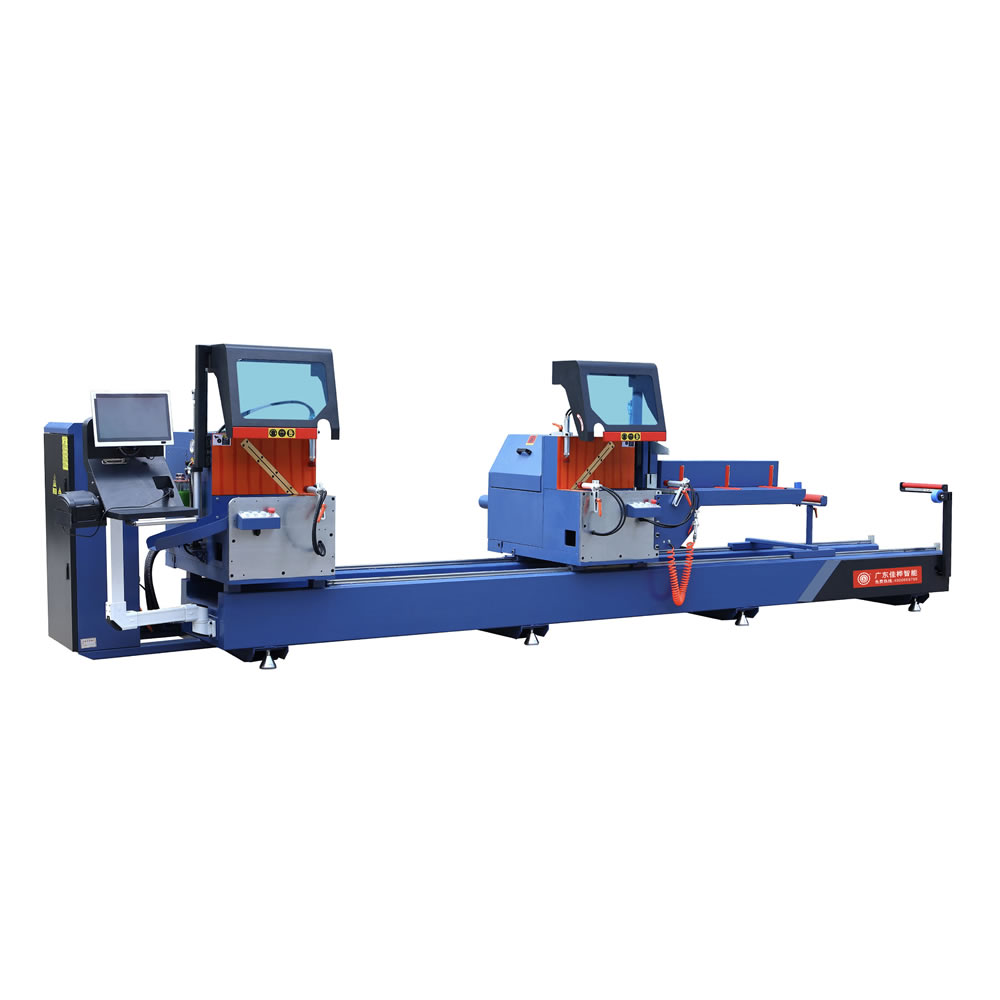

Used for cutting aluminum doors, windows, and curtain wall profiles. Adopting imported square rails for the system, with high precision and long lifespan. The gas-liquid damping cylinder ensures uniform feed and smooth movement of the saw blade. The movable machine head adopts a large lead ball screw motion form, with high transmission accuracy, accurate positioning, and smooth operation. By using numerical control technology, automatic cutting of profiles of different specifications and sizes can be completed, achieving 45 degree angle cutting of profiles.

Technical parameters:

Power supply: 380V 50Hz

Sawing motor: 2 * 2.2Kw

Speed: 2800r/min

Saw blade specification: 355x30x140T

Work pressure: 0.6-0.8Mpa

Gas consumption: 50L/min

Sawing feed rate: ≤ 3m/min

Head movement speed: ≤ 20m/min

Cutting length: 290-3000mm

Cutting angle: 45°

Cutting range: width 80mm x height 80mm

Dimensions: 4500 * 1200 * 1600mm

Weight: 1500KG
