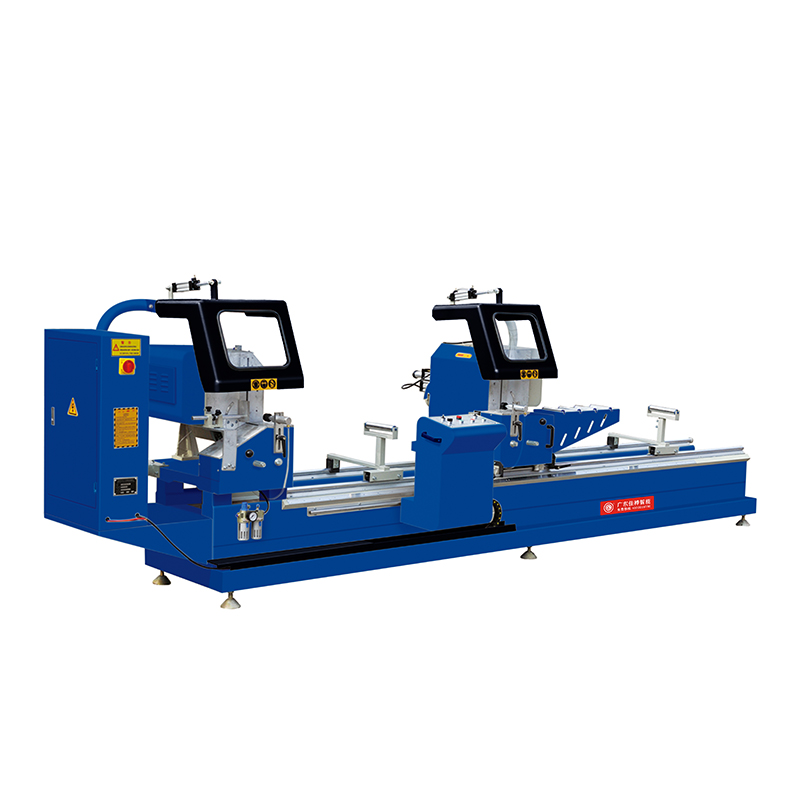

Used for cutting aluminum doors, windows, and curtain wall profiles. Adopting imported linear guide pairs, high precision and long service life. The gas-liquid damping cylinder ensures uniform feed and smooth movement of the saw blade. The movable machine head adopts a large lead ball screw motion form, with high transmission accuracy, accurate positioning, and smooth operation. The use of digital display technology enables automatic cutting of profiles of different specifications and sizes. The two saw blades can automatically switch angles, achieving angle cutting of 45 ° and 90 ° profiles.

Technical parameters:

Power supply: 380V 50Hz

Sawing motor: 2 * 1.5Kw

Speed: 2800r/min

Saw blade specification: 450x30x120T

Work pressure: 0.5-0.8Mpa

Gas consumption: 50L/min

Sawing feed rate: ≤ 3m/min

Head movement speed: ≤ 20m/min

Cutting angle: 90 ° -45 °

Cutting width X height: width 120x height 200mm

Cutting range: 450-3700mm

Dimensions: 5100 * 1600 * 1400mm

Weight: 1500KG
