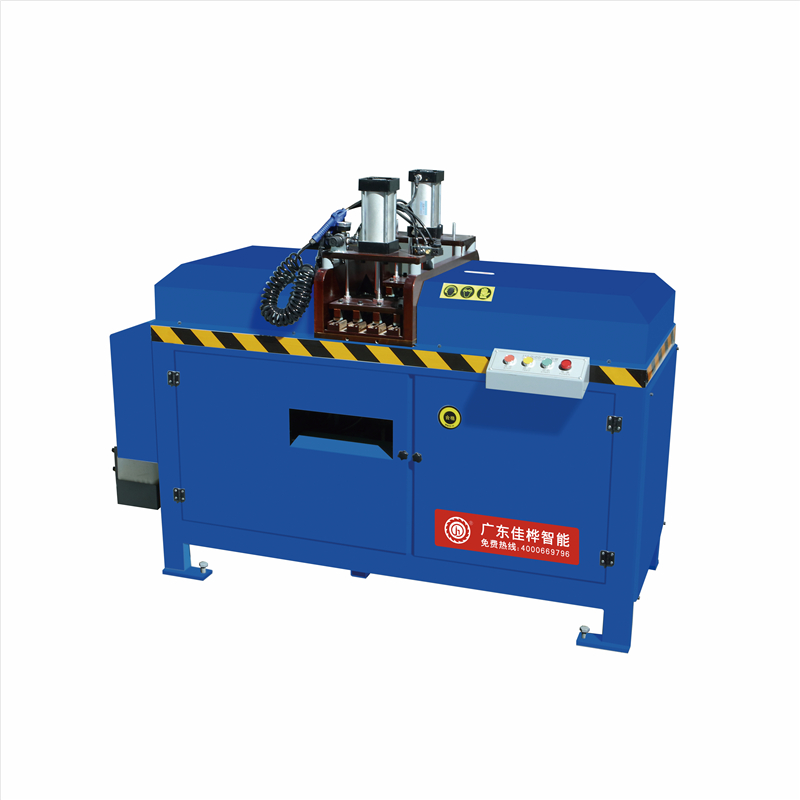

Developed using mature German design concepts combined with the latest usage requirements and habits, specifically for the 45 degree cutting of 38, 50, 65 series aluminum alloy door and window materials, frame materials, and new insulation profile door and window materials. The professional 45 degree cutting uses two saw blades fixed together to form a 45 degree cut (the professional frame material cutting saw machine uses a special cutting tool), completing the 45 degree cutting of the profiles. Using German 14 hard alloy saw blades and imported guide rails, the linear speed is high, resulting in a more stable and accurate cutting angle. The automatic oil spray cooling lubrication and gas-liquid damping stepless speed regulation device ensure good surface smoothness, high precision, and smooth feed.

Technical parameters:

Processing range wH × M: ≤ 85×500 mm

Processing accuracy: ± 0.1mm

Working voltage: 380V 50HZ

Main motor speed: 2840r/min

Main motor power: 1.1KW × 2

Saw blade feed and return speed: 0-3m/min for feed and 2-3m/min for return

Saw blade size: Ø 350 × Ø 30 × 80T

Working pressure: 0.6-0.8Mpa

Dimensions (L × W × H): 1900 × 5900X1350mm

Machine weight: 900kg

Optional equipment: fixture/positioning template/spare tool/vacuum cleaner
