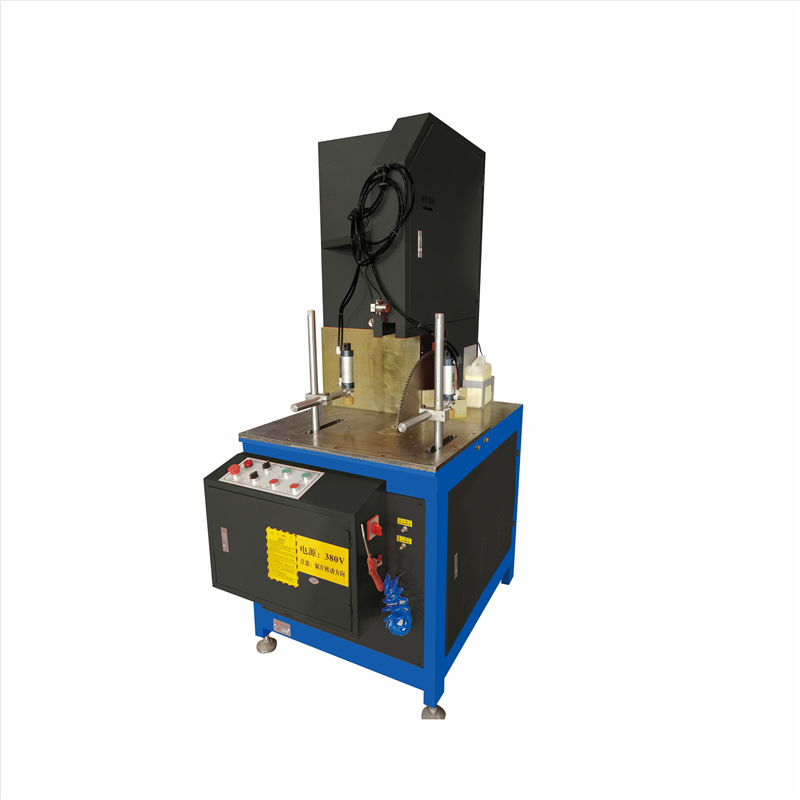

Multi angle desktop cutting machine, mainly used for cutting aluminum alloy window materials and curtain wall materials. The worktable panel is processed with precision cutting, and the worktable is equipped with scales of -45 degrees and 90 degrees, which can be cut at any angle.

Input power supply: 380V 50Hz

Saw blade specification: Φ 600 × Φ 30mm

Sawing range: 150 × 120mm

Cutting angle: 20 °~90 °

Dimensions: 1100 × 850 × 1500mm

Motor power: 3.0kw

Working pressure: 0.5-0.8Mpa

Speed: 2800rpm

Weight: 500kg
